Description
HP Data Sheet

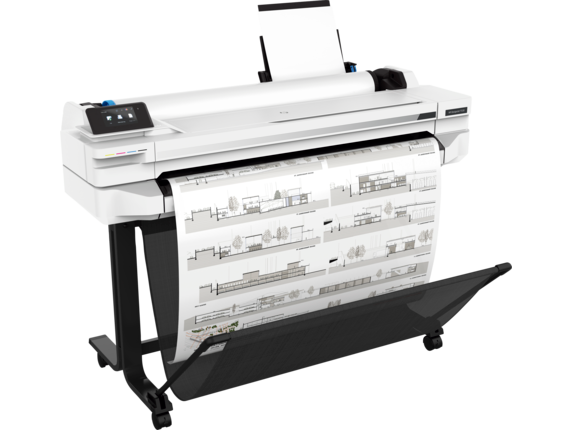

HP DesignJet T500 Printer series data sheet
Functions
Print
Print speed, maximum
27 sec/page on D, 79 D prints per hour[1]
Resolution (color)
Up to 2400 x 1200 optimized dpi
Print Technology
HP Thermal Inkjet
Number of print cartridges
4 (C, M, Y, K)
Product disclaimer
Dynamic security enabled printer. Only intended to be used with cartridges using an HP original chip. Cartridges using a non-HP chip may not work, and those that work today may not work in the future.
http://www.hp.com/go/learnaboutsupplies
Compatible ink types
Dye-based (C, M, Y); pigment-based (K)
Print languages
HP-GL/2, HP-RTL, JPEG, CALS G4
Mobile Printing Capability
Direct print from mobile apps on Android and Chrome OS; HP Smart app for iOS and Android
Connectivity, standard
Fast Ethernet (100Base-T), Hi-Speed USB 2.0, Wi-Fi
Network ready
Standard
Memory, standard
1 GB
Non-printable area (cut-sheet)
0.2 x 0.2 x 0.2 x 0.2 in
Line accuracy
±0.1%[2]
Maximum optical density (black)
8 L* min/2.10 D[3]
Finished output handling
Sheet feed, roll feed, input tray, media bin, automatic horizontal cutter
Media sizes supported
Input tray: A4, A3; manual feed: A2, A1, A0
Media sizes, custom
Input tray: 8.3 x 11 to 13 x 19 in; manual feed: 13 x 19 to 36 x 74.7 in
Media types
Bond and coated paper (bond, coated, heavyweight coated, recycled, plain, bright white), technical paper (natural tracing, vellum), film (clear, matte), photographic paper (satin, gloss, semigloss, premium, polypropylene), self-adhesive (adhesive, polypropylene)
Media sizes, standard
11 to 36 in
Roll external diameter
3.9 in
Media thickness
Up to 11.8 mil
Power
Input voltage (auto ranging): 100-240 V (±10%), 50/60 Hz (±3 Hz), 1200 mA max
Power consumption
< 35 W (printing), < 6 W (ready), < 4.5 W (sleep), < 0.3 W (standby)
Operating temperature range
41 to 104ºF
Warranty
One-year limited hardware warranty
Software included
HP Click, HP DesignJet Utility for Windows, HP Smart app, HP Poster Web app
Dimensions (W X D X H)
50.9 x 20.9 x 36.7 in
Weight
67.2 lb
Package weight
127.9 lb
What’s in the box
HP DesignJet T530 36-in Printer, printer stand, printhead, introductory ink cartridges, spindle, quick reference guide, setup poster, power cord
- [1] Mechanical printing time. Printed in Fast mode, using HP Bright White Inkjet Paper (bond) and Original HP inks.
- [2] ±0.1% of the specified vector length or ±0.2 mm (whichever greater) at 23ºC (73ºF), 50-60% relative humidity, on A0/E printing material in Best or Normal mode with HP Heavyweight Coated roll feed and Original HP inks.
- [3] With HP Premium Instant Dry Photo Gloss media with Original HP inks.
- [4] BMG trademark license code FSC®-C115319, see http://www.fsc.org. HP trademark license code FSC®-C017543, see http://www.fsc.org.
- [5] Can be recycled through commonly available recycling programs.
