Description

Outstanding Reliability, Impressive Colour Quality, Efficient Design

Canon’s comprehensive portfolio of imageRUNNER ADVANCE DX multifunction printers and integrated solutions can help simplify the end user experience and management of technology, better control sensitive information and print-related costs, and help ensure that technology investments proactively evolve with changing needs.



Workflow Efficiency

• 10.1″ intuitive touchscreen with smartphone-like usability.
• A unique, customized experience tailored to individual preferences using My ADVANCE.
• Supports mobile solutions and integration with many popular cloud services like Google Drive (subscription to a third-party cloud service required)
• Scan and convert documents to searchable digital files in a variety of file formats.
• Integration with Canon and various third-party software with embedded application platform.
• Hot Folders allow users to drag and drop a file into a hot folder, and automatically print with predefined settings such as number of copies and finishing requirements.

• Security

  • Advanced standard security feature set to help safeguard sensitive information and assist in regulatory compliance.
  • Integrates with existing, third-party SIEM (Security Information and Event Management) systems to help provide real-time, comprehensive insights into potential threats to the network and printers.
  • Technology to verify that the device boot process, firmware, and applications initialize without alteration at startup. McAfee Embedded Control utilizes a whitelist to protect against malware and tampering of firmware and applications.
  • Security policy settings can be controlled with a dedicated password, configured from a central location, and exported to other supported devices.
  • Control access to the device and specific features, using a host of flexible authentication methods – PIN code, username/password, or card access (requries additional option).

  Quality and Reliability

  • Canon’s signature reliability and engine technologies help keep productivity high and minimize the impact on support resources.
  • Outstanding imaging technologies and toner allow for crisp text and consistent images in rich black-and-white tones.
  • Designed to achieve maximum uptime with status notifications to help keep supplies replenished and intuitive maintenance videos for consumables replacement.
  • imageRUNNER ADVANCE models have received many awards and recognition from leading industry analysts, often referencing strong reliability.

  Device and Fleet Management

  • Designed for quick, easy deployment.
  • Remote diagnostics and parts life management for proactive maintenance and rapid fixes.
  • Easy and intuitive to monitor device status and consumable levels, turn off devices remotely, observe meter readings, manage settings, and implement security policies.
  • Common firmware and regular updates with Unified Firmware Platform (UFP) for continuous improvements and consistency across a fleet.

  Cost Management

  • Track and assess print, copy, scan, and fax usage and allocate costs to departments or projects.
  • Apply print policies and restrict usage by user to help reduce unnecessary printing and contribute to cost efficiency.
  • Standard cloud-based solution provides a centralized dashboard with up-to-the-minute insights into printer activity.
  • Upgrade to uniFLOW server or cloud-based solutions for full accounting and reporting for compatible Canon and third-party devices, pull printing, job routing, and powerful scan workflows.

  ---

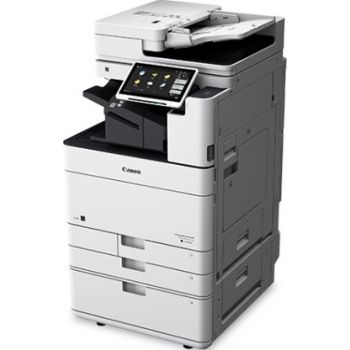

  Specifications for Canon imageRUNNER Advance DX C5740i – Color Laser Multifunctional With 2 Trays + DADF + Starter Set of Toners + Plain Pedestal Laser Printer & Scanner – | C5740i

  General

  Brand

  • Canon

  Model

  • C5740i

  Microless SKU

  • 75503

  Date first available

  • 24 March, 2021

  Scan Specifications

  • Type
    Single-pass Duplexing Automatic Document FeederDocument Feeder Paper Capacity
    Up to 200 Sheets (20 lb. Bond)

    Document Feeder Supported Media Sizes
    11″ x 17″, Legal, Letter, Letter-R, Statement, Statement-R,
    Custom Size: 2-3/4″ x 5-1/2″ to 12″ x 17″

    Document Feeder Supported Media Weights
    1-sided scanning: 13.3 lb bond to 81.4 lb cover (50 to 220 gsm)
    2-sided scanning: 13.3 lb bond to 81.4 lb cover (50 to 220 gsm)

    Platen Acceptable Originals
    Sheet, Book, 3-Dimensional Objects

    Pull Scan
    Colour Network ScanGear2 for both Twain and WIA Supported OS: Windows 7/8.1/10 Server 2008/Server 2008 R2/Server 2012/Server 2012 R2/ Server 2016

    Scan Resolution (dpi)
    Scan for Copy: 600 x 600
    Scan for Send: (Push) 600 x 600 (SMB/FTP/WebDAV/IFAX), (Pull) 600 x 600
    Scan for Fax: 600 x 600

    Scan to Mobile Devices and Cloud-based Services
    A range of solutions is available to provide scanning to compatible mobile devices and certain cloud-based services depending on your requirements.

    Scan Speed (Letter) (BW/CL)
    Single-sided Scanning: 135/135 (300 dpi), 80/80 (600 dpi)
    Double-sided Scanning: 270/270 (300 dpi), 160/90 (600 dpi)

  Print Specifications

  • Print Resolution (dpi)
    1200 x 1200Standard Page Description Languages
    UFR II, PCL6, Adobe PS 3

    Supported File Types
    PDF, TIFF, JPEG, EPS, XPS

    Printing from Mobile Devices and Cloud-based Services
    A range of standard and optional software and MEAP-based solutions (including AirPrint, Mopria, Google Cloud Print, Canon PRINT Business, and uniFLOW Online) are available to provide printing from mobile devices or internet-connected devices and cloud-based services depending on your
    requirements. Please contact your sales representative for further information.

    Fonts
    PCL fonts: 93 Roman, 10 Bitmap fonts, 2 OCR fonts, Andalé Mono WT J/K/S/T (Japanese, Korean, Simplified and Traditional Chinese), Barcode Fonts
    PS fonts: 136 Roman

    Operating System
    UFRII/PS: Windows 7/8.1/10/Server2008/ Server2008 R2/Server2012/Server2012 R2/Server2016/Server2019, Mac OS X (10.10 or later)
    PCL: Windows 7/8.1/10/Server2008/ Server2008 R2/Server2012/Server2012 R2/Server2016/Server2019
    PPD: Windows 7/8.1/10, Mac OS X(10.9 or later)

  Copy Specifications

  • First-Copy-Out-Time (LTR)
    As fast as 4.1 seconds (BW)
    As fast as 6.1 seconds (Colour)Copy Resolution (dpi)
    600 x 600

    Multiple Copies
    Up to 999

    Magnification
    25%-400% (1% Increments)

    Preset Reduction/Enlargement
    25%, 50%, 64%, 73%, 78%, 100% (1:1), 121%, 129%, 200%, 400%

  Main Unit

  • Type
    Colour Laser MultifunctionalCore Functions
    Standard: Print, Copy, Scan, Send, Store
    Optional: Fax

    Processor
    1.75GHz Dual Core Processor

    Control Panel
    10.1″ TFT LCD WSVGA Colour Flat-panel

    Memory
    4.0 GB RAM

    Hard Disk Drive
    Standard: 250 GB

    Maximum: 1 TB

    Interface Connection
    Network: 1000Base-T/100Base-TX/10Base-T, Wireless LAN (IEEE 802.11 b/g/n)

    Others Standard: USB 2.0 (Host) x1, USB 3.0 x1 (Host), USB 2.0 x1 (Device)

    Optional: Serial Interface, Copy Control Interface

    Others

    Standard: USB 2.0 x1 (Host), USB 3.0 x1 (Host), USB 2.0 x1 (Device)

    Optional: Copy Control Interface

    Paper Capacity (LTR, 20 lb. Bond)
    Standard: 250 Sheets

    Maximum 3,450 Sheets (with External Finisher and Copy Tray)

    Paper Sources (LTR, 20 lb. Bond)
    Standard: Dual 550-sheet Paper Cassettes,100-sheet Stack Bypass
    Optional: Dual 550-Sheet Paper Cassettes (Cassette Feeding Unit-AM1), 2,450-Sheet, High Capacity Paper Cassette (High Capacity Cassette Feeding Unit-A1), 2,700-Sheet Paper Deck (Paper Deck Unit-F1)

    Paper Output Capacity (LTR, 20 lb. Bond)
    Standard: 1,200 Sheets
    Maximum: 6,350 Sheets

    Finishing Capabilities
    Standard: Collate, Group
    With Options: Collate, Group, Offset, Staple, Saddle Stitch, Hole Punch, Eco Staple, Staple On Demand

    Supported Media Types
    Multi-purpose tray: Thin, Plain, Recycled, Colour, Heavy, Coated, Tracing, Bond, Transparency, Label, Pre-punched, Letterhead, Tab, Envelope Paper
    Cassettes: Thin, Plain, Recycled, Colour, Heavy, Bond, Transparency, Pre-punched, Letterhead, Envelope

    Supported Media Sizes
    Upper Cassette: Letter, Executive, Statement-R, Envelope [No.10 (COM10), DL, ISO-C5], Custom Size (3-7/8″ x 5-7/8″ to 11-3/4″ x 8-1/2″)
    Lower Cassette: 12″ x 18″, 11″ x 17″, Legal, Letter, Letter-R, Executive, Statement-R, Envelope [No.10 (COM10), Monarch, DL, ISO-C5], Custom Size (3-7/8″ x 7-1/8″ to 12″ x 18″)
    Multi-Purpose Tray: 12″ x 18″, 11″ x 17″, Legal, Letter, Letter-R, Executive, Statement, Statement-R, Envelope [No.10 (COM10), Monarch, DL, ISO-C5], Envelope Custom Size (3-7/8″ x 3-7/8″ to 12-5/8″ x 18″), Custom Size/ Free Size (3-7/8″ x 5-1/2″ to 12-5/8″ x 18″)

    Supported Media Weights
    Cassettes: 14 lb. Bond to 140 lb. Index (52 to 256 g/m2)
    Stack Bypass: 14 lb. Bond to 110 lb. Cover (52 to 300 g/m2)
    Duplexing: 14 lb. Bond to 80 lb. Cover (52 to 220 g/m2)

    Print/Copy Speed (BW and Colour)
    Up to 40 ppm (Letter); Up to 24 ppm (Letter-R); Up to 23 ppm (Legal); Up to 22 ppm (11″ x 17″)

    Warm-up Time
    From Power On: Approx. 10 Seconds
    From Sleep Mode: Approx. 10 Seconds
    Quick Startup Mode: Approx. 4 Seconds

    Dimensions (W x D x H)
    24-3/8″ x 28-1/2″ x 36-7/8″ (620 x 722 x 937 mm)

    Installation Space (W x D)
    Basic: 42-5/8″ x 45-3/4″ (1,083 x 1,162 mm) (Right Cover Open with Multi-purpose tray extended + Cassette Drawers Open)
    Fully Configured: 73-1/2″ x 45-3/4″ (1,866 x 1,162 mm ) (Booklet Finisher-Y1 with the extension tray extended + Paper Deck Unit-F1 + Cassette Drawers open)

    Weight
    Approx. 315.3 lb (143 kg)

  Print Resolution (dpi)

  • 1200 x 1200

  Document Feeder Paper Capacity

  • Up to 200 Sheets (20 lb. Bond)

  Multiple Copies

  • Up to 999

  Paper Output Capacity (LTR, 20 lb. Bond)

  • Standard: 1,200 Sheets
    Maximum: 6,350 Sheets
