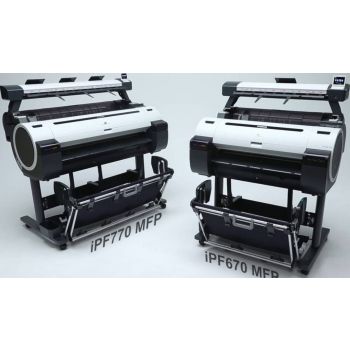

Canon imagePROGRAF iPF770 MFP L36, Multifunction Printer, 47 dBA, 36″ Large Format Printer Size | iPF770-MFP

////Canon imagePROGRAF iPF770 MFP L36, Multifunction Printer, 47 dBA, 36″ Large Format Printer Size | iPF770-MFP

Canon imagePROGRAF iPF770 MFP L36, Multifunction Printer, 47 dBA, 36″ Large Format Printer Size | iPF770-MFP

Brand
  • Canon
Model
  • iPF770-MFP
Microless SKU
  • 38167

Delivery time

1 day

Warranty

one year
For Enquiry

Description

INK SYSTEM

• The 5-Color ink set found in the imagePROGRAF
iPF770 and iPF670 large-format printers is ideal for
technical applications, posters, and office signage.
This ink technology uses four highly colorfast dye inks
for producing bold, expressive color, plus two channels
of pigment matte black ink for printing precise lines,
smooth curves, and small text on technical and office
documents. Included is a reformulated magenta ink,
that helps produce a wider color gamut in the red and
orange spectrums, compared to previous models.

• The printer’s sub-ink tank system allows for all of
the available ink in a tank to be used before needing to
replace it, helping eliminate any wasted ink. The empty
tanks can also be replaced without stopping a print job.

LOW OPERATIONAL COST

• A number of important built-in features help minimize
ink consumption, media waste, and maintenance costs
to help reduce total cost of operation. These features
include Economy Print Mode for low cost per print,
auto-rotation, and nesting to minimize media waste.

SPACE SAVING DESIGN

• The printers have a small footprint with fully frontaccessible operation for flush wall installation, to fit into
almost any environment. There is also an assisted toploading feature for easy media loading.

VERSATILITY

Enhancements to the line-up of imagePROGRAF
software solutions can help improve printing workflow
and management.

imagePROGRAF Print Utility*
This iOS-based app allows users to print PDF files
wirelessly, directly from an iPad® to an imagePROGRAF
printer.

Direct Print & Share 2.0**
Canon’s cloud-based portal solution allows for the
sharing and printing of JPG, TIFF, PDF, and HP-GL/2
files from almost anywhere in the world. Also,
shortcut-printing capability has been added for
drag-and-drop printing (PC only).

PosterArtist Lite
Poster creation software gives you all the tools you’ll
need to design and output impressive large-format signs
and banners (PC only).

Print Plug-in for Microsoft Office
Allows for users of any skill level to print posters or
banners directly from Microsoft® Excel®, PowerPoint®,
and Word®.

Accounting Manager
Help keep track of costs and allocate consumable
expenses to projects easily. This management tool
allows you to track print jobs by user to calculate ink
and media (PC only).

imageRUNNER Enlargement Copy
Scan-to-Print using an imageRUNNER or imagePRESS
device to an imagePROGRAF iPF770/670 printer (PC only).

SPECS

GENERAL

  • Printing Technology
    Ink-jet – color
  • Office Machine Features
    Scan to application, SingleSensor Technology Assembly
  • Manufacturer
    Canon

PRINTER

  • Inkjet Technology
    Canon FINE (Full-lithography inkjet Nozzle Engineering)
  • Nozzle Configuration
    5120 nozzles (matte black), 4 x 2560 nozzles (cyan, magenta, yellow, black)
  • Minimum Ink Droplet Size
    4 pl
  • Ink Cartridge Configuration
    6 individual ink tanks

MEMORY

  • Standard Memory
    256 MB

POWER

  • Power Consumption Standby
    5 Watt
  • Power Consumption Operational
    140 Watt

MISCELLANEOUS

  • Consumables Included
    1 x ink tank (dye-based cyan)
    1 x ink tank (dye-based magenta)
    1 x ink tank (dye-based yellow)
    1 x ink tank (dye-based black)
    2 x ink tank (pigmented matte black)
    1 x printhead
    1 x maintenance cartridge
  • Color Category
    black, white
  • Included Office Machine Accessories
    2″/ 3″ roll holder, A2 coated paper (5 sheets), USB cable, basket

RAM

  • Installed Size
    256 MB

PRINTING

  • Max Printing Resolution
    2400 x 1200 dpi (color)
  • Max Resolution Color
    2400 x 1200 dpi
  • Printer Drivers / Emulations
    GARO, HP-RTL, HPGL/2
  • Ink Cartridge Configuration
    6 individual ink tanks
  • Ink Palette Supported (Colors)
    Cyan, magenta, yellow, black, matte black
  • Nozzle Configuration
    5120 nozzles (matte black), 4 x 2560 nozzles (cyan, magenta, yellow, black)
  • Color
    5-ink
  • Minimum Ink Droplet Size
    4 pl
  • Inkjet Technology
    Canon FINE (Full-lithography inkjet Nozzle Engineering)

ENVIRONMENTAL PARAMETERS

  • Sound Emission (Idle)
    35 dBA
  • Sound Emission (Operating)
    47 dBA
  • Min Operating Temperature
    59 °F
  • Max Operating Temperature
    86 °F
  • Sound Emission
    35 dBA (idle) / 47 dBA (operating)
  • Humidity Range Operating
    10 – 80% (non-condensing)

CONNECTIONS

  • Interfaces
    2 x USB 2.0 – 4 pin USB Type B
    1 x Gigabit LAN – RJ-45
  • Operating System Support
    MS Windows XP, MS Windows 7, MS Windows Vista, Windows 8, Windows 8.1, Apple Mac OS X 10.6.8 – 10.10.x, Windows 10
  • Software Included
    Drivers & utilities, PosterArtist Lite, Canon Direct Print & Share

DOCUMENT & MEDIA HANDLING

  • Max Media Size
    Other
  • Speed Details
    Scanning: up to 180 inch/min – B/W
    Scanning: up to 60 inch/min – color
    Printing: 25 sec (A1)
  • Max Original Size
    42.01 in x 597.99 in
  • Original Type
    sheets
  • Media Type Class
    film / transparencies, other, photo paper, plain paper
  • Media Size Class
    Other
  • Large Format Printer Size
    36″
  • Supported Media Type
    bond paper, coated paper, film, glossy photo paper, heavy-weight paper, high resolution paper, luster paper, matte paper, plain paper, satin photo paper
  • Supported Media Sizes
    Roll (10 in), Roll (14 in), Roll (17 in), Roll (24 in), Roll (36 in), Roll A0, Roll A1 (24 in), Roll B1, Roll B2

HEADER

  • Brand
    Canon
  • Product Line
    Canon imagePROGRAF
  • Model
    iPF770 MFP L36
  • Packaged Quantity
    1

INTERFACE REQUIRED

  • Connector Type
    4 pin USB Type B, RJ-45
  • Type
    Gigabit LAN, USB 2.0
  • Total Qty
    1, 2

OFFICE MACHINE

  • Type
    printer / copier / scanner
  • Functions
    copier, printer, scanner
  • Printing Technology
    ink-jet
  • Printing Output Type
    color
  • Office Machine Features
    SingleSensor Technology Assembly, scan to application

DIMENSIONS & WEIGHT

  • Width
    51.2 in
  • Depth
    34 in
  • Height
    42.1 in
  • Weight
    138.89 lbs

SCANNING

  • Optical Resolution
    600 dpi
  • Scan Element
    CIS

CONSUMABLES INCLUDED

  • Type
    ink tank, maintenance cartridge, printhead
  • Color
    dye-based black, dye-based cyan, dye-based magenta, dye-based yellow, pigmented matte black
  • Included Qty
    1, 2

PRINTING SYSTEM

  • Inkjet Technology
    Canon FINE (Full-lithography inkjet Nozzle Engineering)
  • Color
    5-ink
  • Photo Printing Capability
    Yes
  • Nozzle Configuration
    5120 nozzles (matte black), 4 x 2560 nozzles (cyan, magenta, yellow, black)
  • Minimum Ink Droplet Size
    4 pl
  • Ink Palette Supported (Colors)
    cyan, magenta, yellow, black, matte black
  • Ink Cartridge Configuration
    6 individual ink tanks

SOFTWARE

  • Operating System Support
    Apple Mac OS X 10.6.8 – 10.10.x, MS Windows 7, MS Windows Vista, MS Windows XP, Windows 10, Windows 8, Windows 8.1
  • Software Included
    Canon Direct Print & Share, PosterArtist Lite, drivers & utilities

SPEED DETAILS

  • Function
    printing, scanning
  • Max Speed
    180 inch/min, 60 inch/min
  • Max Speed (sec)
    25 sec
  • Size
    A1
  • Mode
    B/W, color

PC CONNECTIVITY

  • Connection Availability
    Yes
  • Interface
    Gigabit LAN, USB 2.0

SERVICE & SUPPORT

  • Type
    1 year warranty

SERVICE & SUPPORT DETAILS

  • Type
    limited warranty
  • Full Contract Period
    1 year

POWER ADAPTER

  • Voltage Required
    AC 120/230 V
  • Frequency Required
    50/60 Hz
  • Power Consumption Operational
    140 Watt
  • Power Consumption Standby
    5 Watt

GENERAL

  • Manufacturer
    Canon
